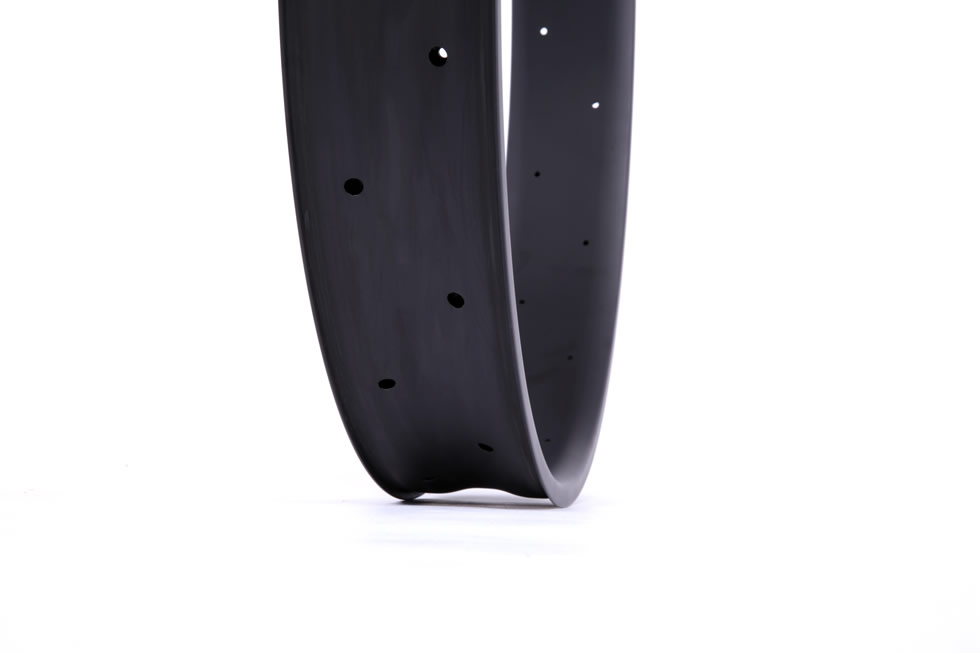

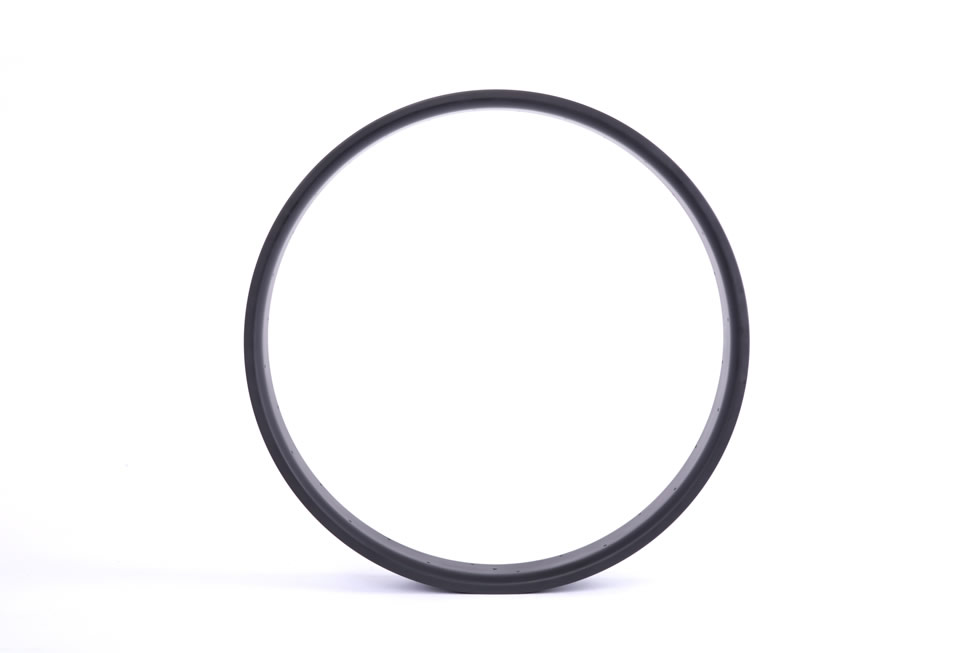

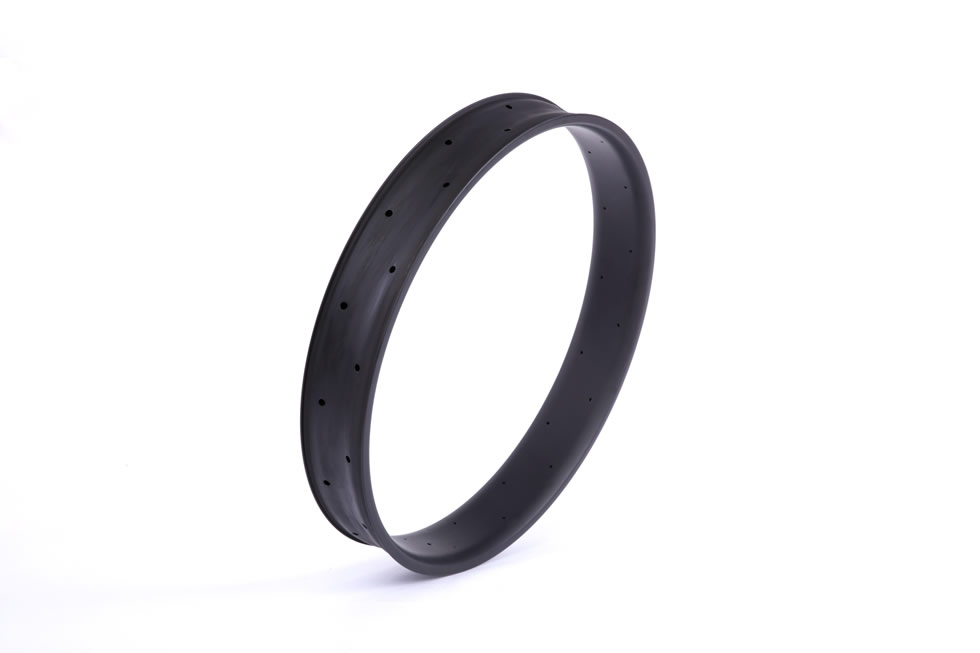

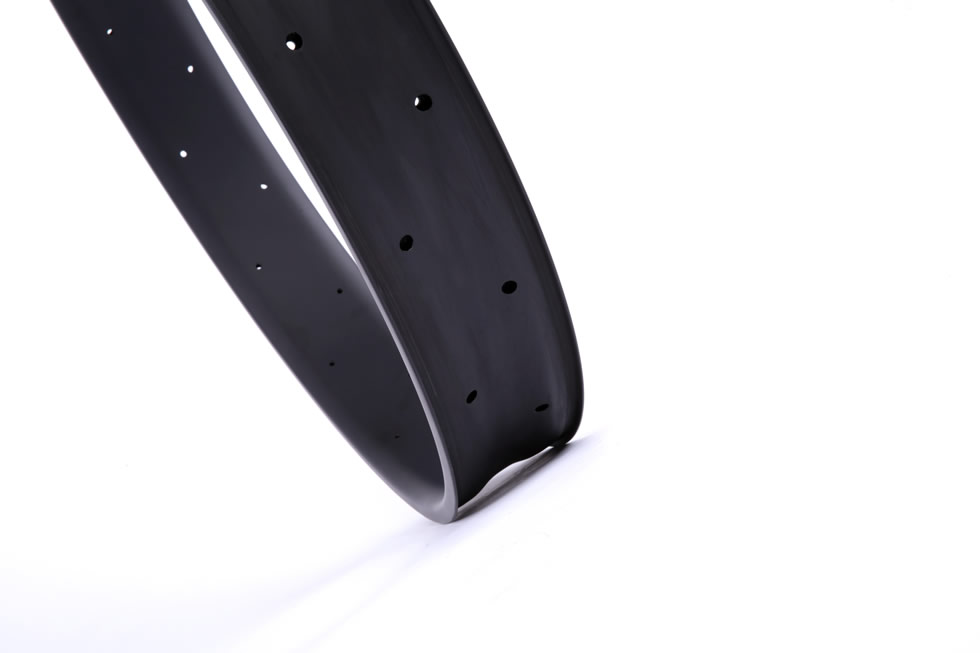

Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
  • Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
  • Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
  • Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
  • Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
  • Carbon tubeless compatible fat bike rim 20mm depth inner width 85mm outer width 90mm wide double-wall construction hookless for 26 inch fat bike
    • Product Detail
    • Write a View
    • Online Talk
    • Buy Now

    Price(USD/PCS) $282.00
    Size 26er
    Type Hookless / Beadless
    Tubeless Compatible
    Spoke Hole 16H to 36H Dual/Center/Offset drilling
    Internal hole Customized
    Inner width 85mm
    Rim Depth 20mm
    Outer width 90mm
    Finish Glossy /Semi matte semi glossy / Matte
    Weave UD / 3K / 12K                     Detail...
    Decal Customized                         Detail...
    Warranty 1 Year
    Lead time 10 to 12 days

    Use Sand 、Snow 、Single track
    Material Full Carbon Toray T700
    Weight 650g +/-30g
    ERD 535mm
    Spoke holes offset +/- 19.5mm
    Max.weight limit 120Kg
    Max.tyre pressure 25psi
    Cycling tyre pressure 13+/-2 psi (Recommend)
    Flatness ±0.15mm
    Roudness Jump ±0.15mm
    Spoke Mode Exposed(Default) / Concealed
    Max spoke tension 120Kgf
    Standard En Standard
    Grade FB-Snow01

    Technology improve of FB-Snow01

    * 90mm wide design makes fat wheels fit for all widths of fat bike tires.

    * The hookless and hook lock design makes tubeless setups perfectly: These carbon fiber fat bike rims will work with or without tubes from 3.8” to 4.8”. But tubeless (no tube) makes your fat bikes much lighter.

    * These fat bike wheels tubeless system performs perfectly at super low pressure. The rim mold is modified with better tubeless tyre setup to make the tire mounting more easily and perfectly.

    * Double-wall construction makes carbon tubeless fat bike rim with better stiffness and ride handling. We have experience in manufacturing carbon fat bike rim with single wall design since 2010 year. This 90mm wide double-wall rim is much improved and stronger, the rim weight is still quite light at 650+/-30g.Most fat wheels are in alloy in the market, and some provides carbon ones, but they do not have much experienced in carbon fat bike wheel manufacturing. We have started to manufacture fat bike.

    * Manufactured by new manufacturing process with one-piece-layer, to make carbon fiber layer continuous and rims strongest. We have the big layer-cutting machine to cut one-piece layer, for other factories, their cutting machine is not big enough . Read more about: Technology Improve of Future-Bicycle Carbon Rims

    * Remove the curing carbon ring, improve the spoke hole tension and make the rim weight lighter.

    * Without any square holes on rims bed, for other factories, they drilled this big square hole to make air blades go out after molding. But we have our new skill, the air blades can come out without any big square hole. This improves the rim strength strongly.

    * Superior carbon fiber material: Toray T700, a light –weight & durable carbon fiber design constructure makes rims ultimate light & super-stiff .

    This new carbon fat bike rim 90mm wide is more durable with double wall design for snow, sand or single track riding. The 90mm width fat wheels is and ideal size for all widths of fat bike tires.

                Dual drilling                                                         Offset drilling                                                Centered drilling

    32H for example: 64 holes totally                     32H for example: 32 holes totally                     32H for example: 32 holes totally
